HG-858 fully auto mouse glue trap machine

Categories：

Pest trap make machine

paper feeding and folding machine gluing and folding machine conveyor belt

+86 13785498142

dgcartonmachine@163.com

Online consulting

Product introduction

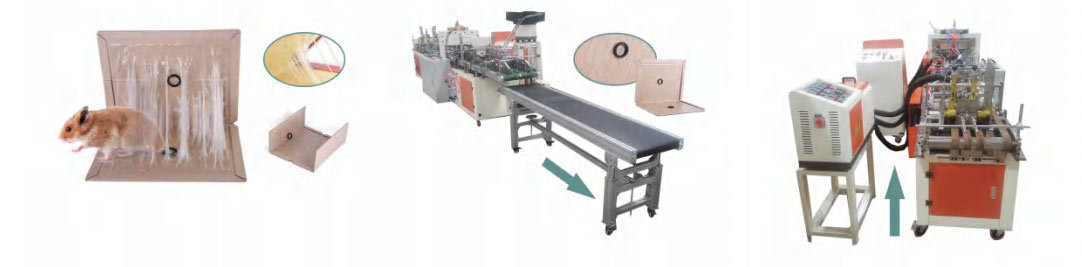

●paper feeding and folding machine
●gluing and folding machine
●conveyor belt
●5kg glue dispenser
●40kg hot melt glue machine
●auto button putting Machine
●1 set of 3 scraper gun seat assemblies
●3 sets of glue gun seat assemblies
●4 pieces of 1.8m hoses

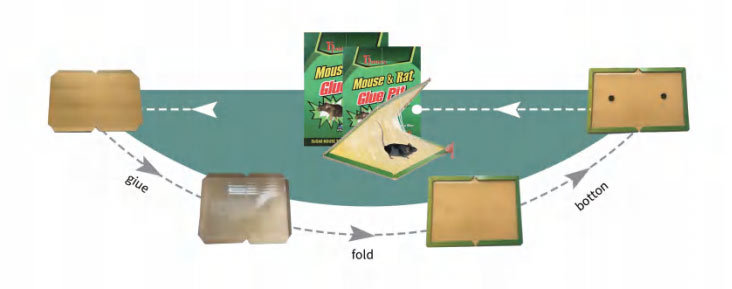

●automatic spreading
●automatic fold
●150kgmelt tank

A.Machine size and weight	Floor Space	7mx2m
A.Machine size and weight	Weight	950kg
B.Factory Facility SUDp[y equirements	Masbine	30kw
	Working Dressur	AC380v±10%50 Hz
	piBreafureter	Min2-6Kg/m,pipe diameterφ8
	nviron men realirements	Clean,separate material machines, equipped with fire extinguisher facilitie
C.Device control method	programmer	Plc controller and 7 inch touch screen
C.Device control method	teionstante heating	PID control
D.mouse board size range	Width	170mm-300mm
	Glue coating size	130mm-260mm(根据版型定做刮刀嘴)
	tolerance range	土0.5mm
E.configure	Control system	PLC:yonghong
	Control system	Touch screen:Fany
	Transmission,fold	Servo control:Hui chuan
	Auto feeder	400w horizontal motor+frequency control (Yatai)
F.Other	Most machine parts use standard parts
F.Other	Need to be equipped with a air compressor more than 1.5KW

◆ Effective maximum glue width:230 mm
◆(for wideer products need to be customzied and make bigger size machine)
◆ Glue uniformity:±3%
◆ Glue weight range:20~500 g/M
◆ Production speed:0~80 sheets/min
◆ Air source:6~8 kgf/cm²
◆ Equipment power supply:AC 380V
