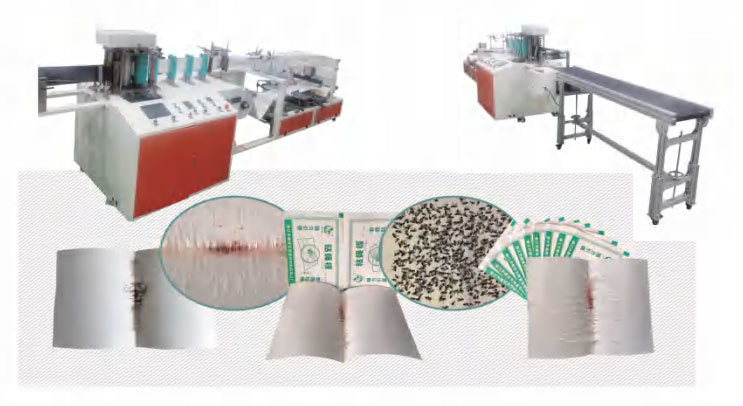

High speed sticky fly paper machine HG868


our company specialized in pests equipment for 20 years.High speed machine for fly stick paper and mouse soft board

Product introduction

our company specialized in pests equipment for 20 years.High speed machine for fly stick paper and mouse soft board
New model 202311th generation high speed machine for sticky fly paper and sticky rat soft board: high-speed roller coating machine includes 1 set 150KG glue melting pot and 2m counting
assembly line;The roller coating machine can not only automatically sprinkle fish meal after
gelatinizing,but also directly add fish meal or fish paste to the glue for automatic mixing and production without blocking.The products with different gelatinizing widths need to be replaced with rollers of
different specifications.The standard configuration of rollers is three specifications,with a production    speed of more than 18000 pieces/hour.The amount of glue can be adjusted,and the glue can be applied intermittently at a high speed.It can produce printed or non printed paper or plastic film reels;
Production process:automatic paper feeding-gelatinizing (sprinkling fish meal)-folding-splitting into sheets of specified specifications
Matters  needing  attention:
1.Dry powder fire extinguishers shall be provided around the machine according to fire protection requirements;
2.It is prohibited to heat for a long time when there is no glue or little glue in the glue melting machine and glue melting tank;
3.The glue melting machine and glue melting tankshall be guarded when they are turned on for heating;

4.Try to keep half or more glue in the glue melting machine and the glue melting tank.When pouring
glue into the outside,pay attention to prevent the glue from leaking out of the melting tank.When   using the glue melting tank to add glue,pay attention to the amount of glue,and do not let the glue overflow to the outside;

Maximum unwinding diameter:

800 mm

Inner diameter of paper core:

φ76mm

Effective maximum gluing width:

42cm

Gluing uniformity:

±5%

Production speed:

0-80m/min  or 0-300sheets/min

Range of coating weight:

20~100g/m2

Air pressure source:

5-7kgs/cm2

Power supply for equipment:

AC380V.
